Surgical Tables

Features

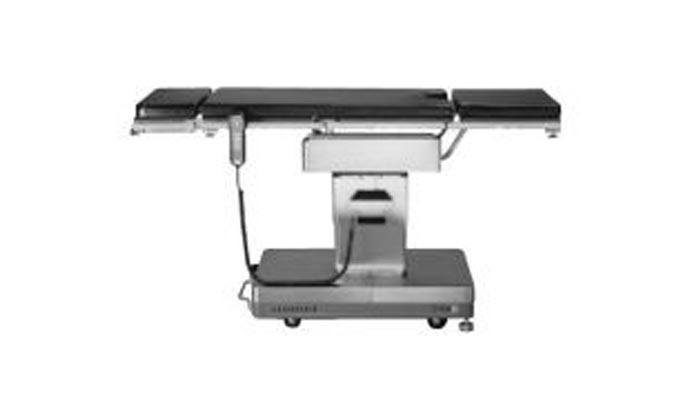

• - The Shampaine 5100B is a remote controlled, C-Arm compatiable, full-function surgical table. It has a longitudinal slide for full-length image amplification and an x-ray cassette tunnel in each section. No table has greater C-arm accessibility for fluoroscopic procedures.

Specifications

• - Length: 72.50" (88" with Removable Leg Extension
• - Width: 19.75" (21.75" with Side Rails)
• - Trendelenburg: Up to 25°
• - Lateral Tilt: Up to 18°
• - Reverse Trendelenburg: Up to 25°
• - Lateral Tilt: Up to 18°
• - Back Section: Adjustable from 30° below horizontal to 90°
• - Kidey Elevator: Extendible Up To 2.5"
• - Electrical Input: 115 VAC. 50/60 Hz, 4A, Single-Phase or 220 VAC, 50/60 Hz, 2A, Single Phase
• - Weight: (Net) 750., (Gross) 900lbs

Refurbishment Process

• - Fully Disassembled Table
• - Clean, Degrease, and Sandblast Table Parts
• - Repaint All Painted Parts
• - Inside Base Motor Painted Red To Show Work Detail
• - Table top frame and outside base painted our specialty coating hammered bronze for a great look and durable finish.
• - Hydraulic block and lines flushed
• - Circuit board and wire harnesses inspected and tested.
• - Radiolucent tops smooth and recoated.
• - New stickers and emblems
• - Caster re-greased and sealed
• - New brake feet pads
• - New 2" pad set
• - 1 Year Warranty

Features

• - Self leveling brakes
• - Optional foot control
• - Optional battery back up
• - X-Ray cassette deck
• - Pressure reduction mattress
• - Manual override foot pump
• - Hand Control Functions
• - Great Versatility
• - Simple Operation
• - Absolute Override Protection

Specifications

• - Table Height -> Raised: 44"
• - Table Height ->Lowered: 27"
• - Table Height ->Trendelenburg: 25˚
• - Table Height ->Reverse Trendelenburg: 25˚
• - Table Height ->Lateral Tilt: 18˚
• - Back Section-> Down: 25˚
• - Back Section-> Up: 55˚
• - Leg Section-> Down: 105˚
• - Leg Section-> Up: 80˚
• - Leg Section-> Reflex: 20˚
• - Leg Section-> Flex: 30˚
• - Kidney Bridge: 4 1/2" elevation
• - Weight Limit: 500 lbs
• - Dimensions-> Length: 75 15/16"
• - Dimensions-> Width: 20"
• - Dimensions-> Width with Rail: 21 5/8"

Refurbishment Process

• - Fully Disassembled Table
• - Clean, Degrease, and Sandblast Table Parts
• - Repaint All Painted Parts
• - Inside Base Motor Painted Red To Show Work Detail
• - Table top frame and outside base painted our specialty coating hammered bronze for a great look and durable finish.
• - Hydraulic block and lines flushed
• - Circuit board and wire harnesses inspected and tested.
• - Radiolucent tops smooth and recoated.
• - New stickers and emblems
• - Caster re-greased and sealed
• - New brake feet pads
• - New 2" pad set
• - 1 Year Warranty

Features

• - Lifts 1,000 pounds with 600-pound articulation capacity
• - Removable back and leg sections
• - Handheld remote control for adjusting the table
• - Manual brake release
• - Four-point auto-leveling braking system for additional stability
• - Tabletop rotates 210° for superior C-arm and microscope capabilities.

Specifications

• - Table top height: 26" min/ 45" max
• - Trendleburg/Reverse Trendleburg: 30 degree/ 30 degree
• - Lateral tilt (right/left) : 30 degree/ 30 degree
• - Lower back plate raise/Lower: 80 degree/ 40 degree
• - Leg plates raise/lower: 0 degree/ 1000 degree adjustable individually or simultaneously
• - Longitudinal slide: 9" for maximum C-arm access
• - Weight Limit (Articulate): 600 lbs
• - Patient weight capacity: 1,000 lbs

Refurbishment Process

• - Fully Disassembled Table
• - Clean, Degrease, and Sandblast Table Parts
• - Repaint All Painted Parts
• - Inside Base Motor Painted Red To Show Work Detail
• - Table top frame and outside base painted our specialty coating hammered bronze for a great look and durable finish.
• - Hydraulic block and lines flushed
• - Circuit board and wire harnesses inspected and tested.
• - Radiolucent tops smooth and recoated.
• - New stickers and emblems
• - Caster re-greased and sealed
• - New brake feet pads
• - New 2" pad set
• - 1 Year Warranty

Features

• - Removable pendant hand control
• - One pair of arm boards with pads
• - Urological drainage bag system
• - Electrically conductive table top cushions

Specifications

• - Table top height: 29" min/ 40" max
• - Table length: 69" / 82" (with head rest)
• - Trendleburg/Reverse Trendleburg: 20 degree/ 20 degree
• - Lateral tilt (right/left) : 20 degree/ 20 degree
• - Lower back plate raise/Lower: 80 degree/ 40 degree
• - Leg plates raise/lower: 0 degree/ 1000 degree adjustable individually or simultaneously
• - Longitudinal slide: 9" for maximum C-arm access
• - Weight Limit (Articulate): 500 lbs
• - Patient weight capacity: 7,740 lbs

Refurbishment Process

• - Fully Disassembled Table
• - Clean, Degrease, and Sandblast Table Parts
• - Repaint All Painted Parts
• - Inside Base Motor Painted Red To Show Work Detail
• - Table top frame and outside base painted our specialty coating hammered bronze for a great look and durable finish.
• - Hydraulic block and lines flushed
• - Circuit board and wire harnesses inspected and tested.
• - Radiolucent tops smooth and recoated.
• - New stickers and emblems
• - Caster re-greased and sealed
• - New brake feet pads
• - New 2" pad set
• - 1 Year Warranty

Features

• - Modular design provides ideal positioning for the widest variety of surgical procedures
• - 1,000 lb maximum patient weight capacity for bariatric procedures
• - Powered longitudinal slide provides maximum C-arm access
• - Battery powered, Electro/Hydraulic operation for smooth and quiet performance
• - Infrared control panel with IR remote offers programable table top settings

Specifications

• - Table top height: 23.4" min/ 41.6" max
• - Trendleburg/Reverse Trendleburg: 30 degree/ 30 degree
• - Lateral tilt (right/left) : 20 degree/ 20 degree
• - Lower back plate raise/Lower: 80 degree/ 40 degree
• - Leg plates raise/lower: 10 degree/ 90 degree adjustable individually or simultaneously
• - Longitudinal slide: 9" for maximum C-arm access
• - Table top width: 20.9" (22.8" w/side rails)
• - Electrical: Rechargeable battery power, chargeable using 100-240V AC (switchable), 50-60 Hz
• - Patient weight capacity: 1,000 lbs

Refurbishment Process

• - Completely disassemble table
• - Clean,degrease and sandblast all table parts
• - Clear gloss polyurethane base coat is applied to all polished metals
• - Inside base motor housing painted red to show work detail
• - Hydraulic block aid lines flushed
• - All hydraulic O-rings and seals replaced,All pumps rebuilt,High-low,Tilt,Trend,back,leg and brake system
• - Radiolucent tops smoothed and recoated
• - New stickers and emblems
• - Casters re-greased and sealed
• - New brake feet pads
• - 1 year warranty

Features

• - Modular sections for urological to orthographic procedures
• - Split leg section
• - Almost unlimited configuration options

Specifications

• - Maximum patient weight - 793 lbs
• - Height adjustment - 27" to 44"
• - Longitudinal shift of the table top - 10.5"
• - Trendelburg - 30 degree
• - Reverse trendelburg - 30 degree
• - Tilt - 25 degree

Refurbishment Process

• - Fully Disassembled Table
• - Clean, Degrease, and Sandblast Table Parts
• - Repaint All Painted Parts
• - Inside Base Motor Painted Red To Show Work Detail
• - Table top frame and outside base painted our specialty coating hammered bronze for a great look and durable finish.
• - Hydraulic block and lines flushed
• - Circuit board and wire harnesses inspected and tested.
• - Radiolucent tops smooth and recoated.
• - New stickers and emblems
• - Caster re-greased and sealed
• - New brake feet pads
• - New 2" pad set
• - 1 Year Warranty

Features

• - 1000 lbs. capacity
• - 100% C-Arm access!
• - Motor-driven mobility
• - X-Ray cassette deck
• - Head-to-toe X-ray channel
• - Hydraulic Free!
• - German engineered quality
• - Absolute Override Protection

Specifications

• - 40 degree Trendelenburg and reverse 25 degree tilt
• - 12" longitudinal slide

Refurbishment Process

• - 30 Day Warranty
• - Tested and working perfectly
• - Just removed from bankrupt facility
