Ophthalmology

Features

• - Convergent optics for brilliant views
• - Two "workhorse" magnifications 10 and 16x
• - Short Observer to patient distance
• - Brightest Illumination Available on a Slit Lamp
• - Excellence optics for fatigue free daily use
• - LED-Power for more details

Specifications

• - Slit Width: 0-8mm continuous
• - Slit Height: 1-8mm continuous
• - Illuminated field of view: 8mm diameter
• - Illuminated Intensity: up to 6000 Lux
• - Introducable Filters: blue, redFree(green). grey(10%), head absorption filter
• - Microscope Stereo Angle: 13°
• - Magnification Changer: 10x and 16x
• - Adjustable Microscope PD 54-94mm
• - Video: Inbuilt Port

Refurbishment Process

• -

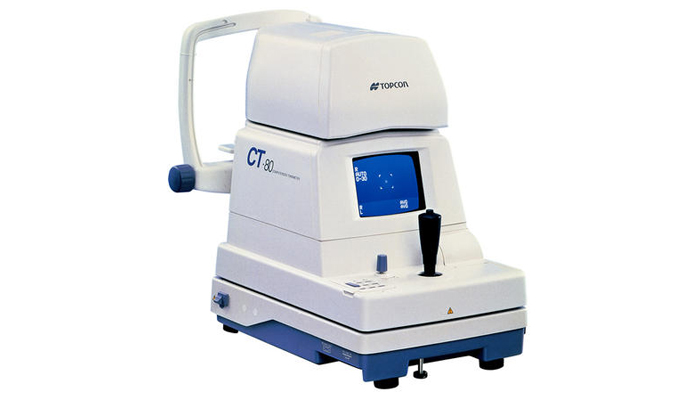

Features

• - Innovative dual sensor system for accurate measurements
• - Triple patient safety function
• - New alignment and improved air cylinder reduces the interval time between measurements by 30%
• - Built-in printer
• - Fast, easy and accurate intracular pressure readings
• - internal Fixation target
• - Auto measurements

Specifications

• - Measuring Range: 0-60mmHg
• - Working Distance: 11mm
• - Measurement Display: Monitor Screen
• - Measurement Recording: Built-in Printer
• - Monitor Screen Size: 5"
• - Power Supply: AC 100, 220, 230, and 240V; 50Hz/60Hz
• - Power Consumption: 80VA
• - Operating Temperature: 10-40°C
• - Dimensions: 10.70"W x 19.89"D x 16.93"- 18"H
• - Weight: 39.68lbs

Refurbishment Process

• -

Features

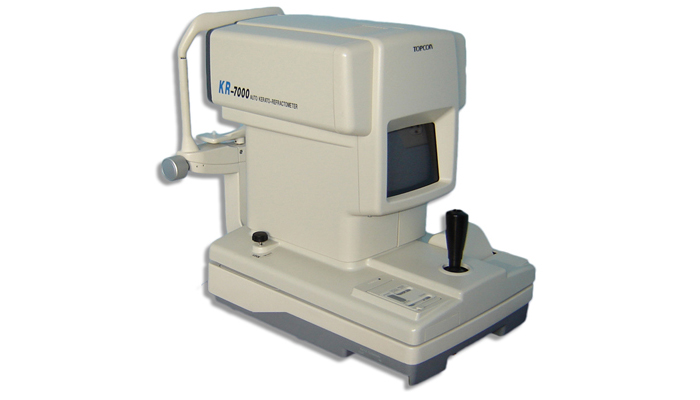

• - Combined automatic refractor and keratometer functions in one compact instrument. The omni directional joy-stick and simplified alignment targets ensure ease of operation. Intra-Red light and auto fogging fixation target elimanate discomfort and promote patient compliance. Extensive keratometric reading plus all of the refraction features found in the RMA-7000 searies auto refractor make the KR-7000 one of the most sophisticated diagnostic instruments available.

Specifications

• -

Refurbishment Process

• -

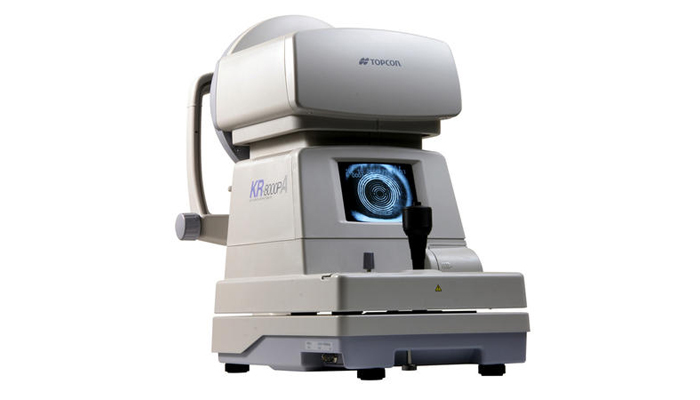

Features

• - Tri-functional instruments featuring auto refraction, keratometry and corneal mapping
• - 10 placido rings for enhanced testing precision
• - Corneal mapping measurements out to 10
• - Optional software kit for printing out detailed color corneal maps
• - Accurate, reliable measurements down to pupil size of 2.0mm
• - Auto measurements
• - Scenic fixation chart
• - Topcon's Omni-direction joystick provides one-handed fast, positive and responsive control

Specifications

• - Minimal pupil diameter 2.0mm
• - Corneal diameter measurement (Pupil diameter) Yes (Range; 2-13mm / Step; 0.25mm)
• - Measurement display TV monitor screen
• - Alignment Screen display
• - Vertex distance 0, 12.0 and 13.75mm (selectable)
• - Energy saving Automatic switch off when left unused after 10 minutes
• - IOL Special IOL switch to adjust to circumstances of IOL wearers
• - Power Supply: 100, 120, 220, 240V
• - Dimensions: 275W X 475D X 450H mm
• - Weight: 41.89lbs

Refurbishment Process

• -

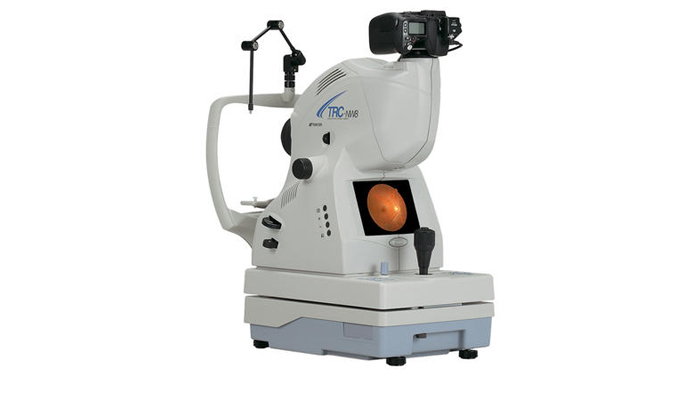

Features

• - Camera features 8 peripheral fixation points as well as a built-in standard central fixation point.
• - Easy Alignment
• - Easy Focusing
• - New Ergonomic Design
• - Auto Flash Intensity
• - Illuminated Operation Panel
• - Electric Chinrest Movement for Operational Ease
• - Small Pupil Capability

Specifications

• - Angle Coverage: 45°, 30°
• - Flash intensity automatically changed corresponding to the angle of 45° and 30°. Manual settings steps also available.
• - Power Supply: AC110, 120, 230, 240V; 50Hz/60Hz
• - Pupil diameter for photography 45° 4.0mmφ or more, 30° 3.7mmφ or more
• - Data picturing Simultaneously name plate imaging

Refurbishment Process

• -

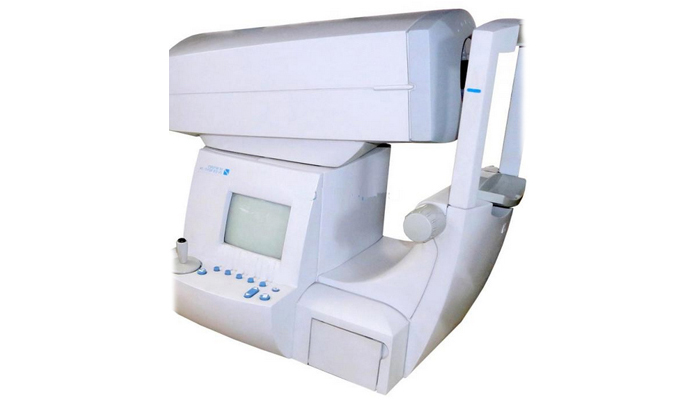

Features

• - Fast, accurate and objective measurements with complete printout
• - Automatic cycle for objective measurements
• - Complete automatic alignment and tracking
• - Acuity line isolation
• - Near Vision Testing
• - Cylinder and axis refinement
• - Glare Testing
• - PD Displayed on printout
• - Children's acuity targets
• - Communicom Interface

Specifications

• - Dimensions: 18"h x 12w x 15d
• - Weight: 50lbs

Refurbishment Process

• -

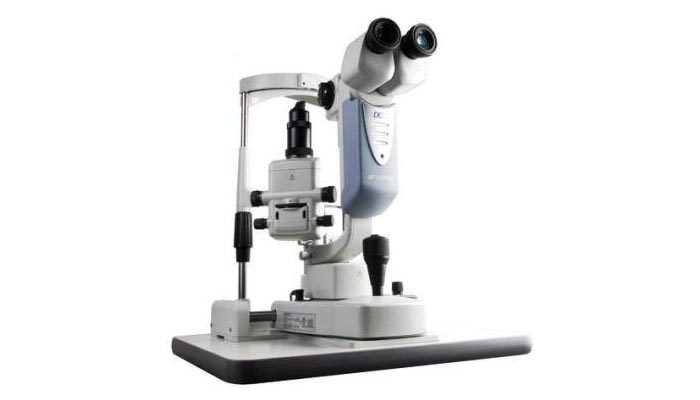

Features

• - The SL-2D is part of TopCon's D-Series Digital Slit Lamps. It Can be used as a convention examination instruments. This cost effective slit lamp features excellent optics and is a compact and easy to use solution for both digital imaging and clinical examination.

Specifications

• - Three convenient magnification ratios of 10X, 16X, and 25.6X selectable with Galilean-type drum
• - Optional DC-3 digital camera for 8 megapixel imaging.
• - Cost-effective solution for imaging and clinical examination
• - Optimal clarity, color resolution and depth-of-field
• - Compact and easy to use
• - Available in table mount or unit configuration

Refurbishment Process

• -

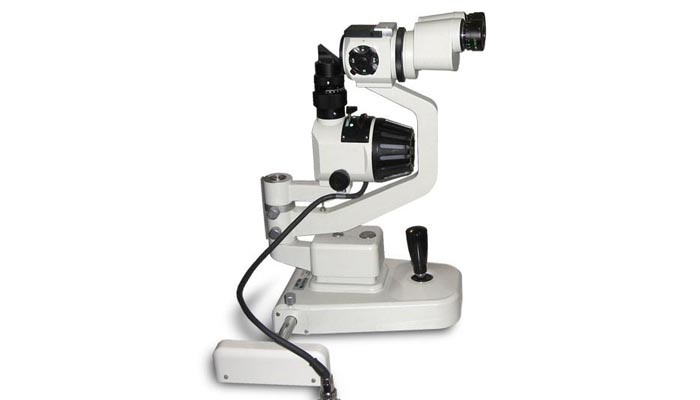

Features

• - Topcon SL-2E Slit Lamp in good condition, Zeiss style, optional Goldman Tonometer available, elevation ring and smooth joystick for easy use.
• - Topcon SL-2E Slit Lamp The Converging binocular tubes combined with the parallel objective lens allow easy fatigue-free stereoscopic examinations.Galilean-type drum provides three fast magnification changes of 10X, 16X and 25.6X using the standard 12.5X Hi-eye point eyepieces.
• -

Specifications

• -

Refurbishment Process

• -

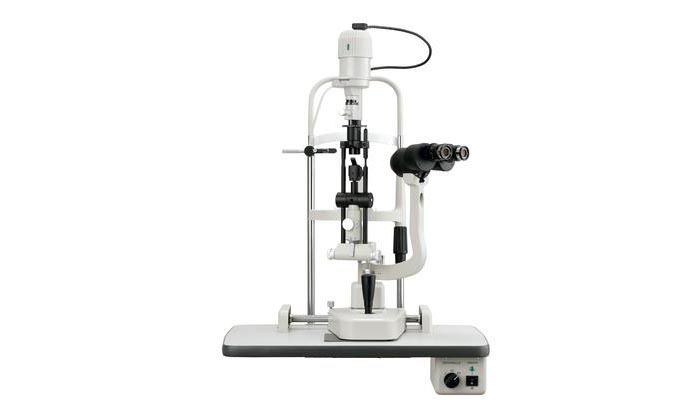

Features

• - The new SL-3G Slit Lamp combines classic versatility with the smoothest mechanism in its type. Its stereoscopic converging microscope and innovative optics provides the practitioner with unsurpassed image clarity and sharpness. This reduces fatigue while providing a clearer field of view. Magnifications can easily and smoothly be changed between 1X to 1.6X using the conveniently located lever.
• -

Specifications

• - Bright, even illumination and optimum colr rendition with powerful halogen bulb.
• - Smooth, effortless control with Topcon's omni-directional joystiq.
• - Slit beam inclination up to 20° for added versatility
• - Continuous adjustment of slit aperture
• - Four built-in filters: cobalt blue, red-free, 13% neutral density and heat absorbing.
• - Precise angular measurement scale simplifies the fitting of astigmatic contact lenses.
• - Available with a variety of optional accessories.

Refurbishment Process

• -

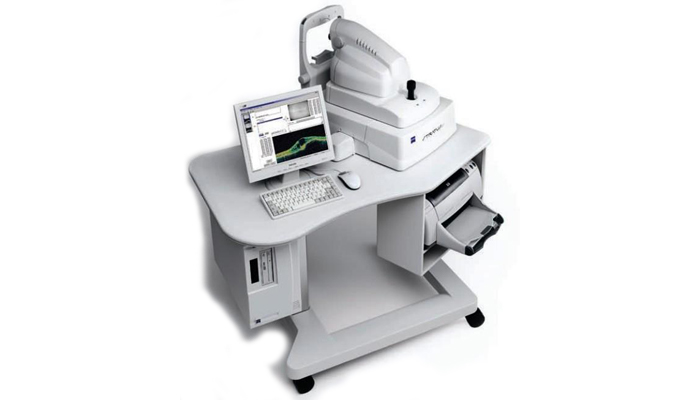

Features

• - About 20 types of scans can define custom scans
• - The standard database of the nerve fiber thickness
• - Objective analysis of the optic disc
• - Visualizing and analysis of retinal disorders

Specifications

• - Optical Tomography: 42 x 57 x 55 cm
• - Overall: 120 x 90 x 150 cm
• - The maximum height of 150 cm
• - Power Supply: 700VA, 50Hz/60Hz

Refurbishment Process

• -
