Examination Lights

Features

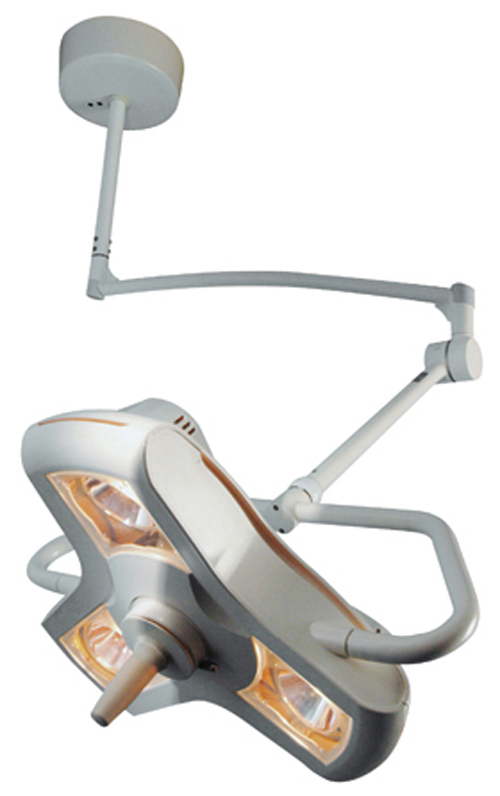

• - Providing both amazing value and unparalleled aesthetics, Philips Burton’s AIM-50 also boasts limitless rotation on ceiling mounts (a feature previously available only on OR type lights). Along with highest intensity illumination, AIM-50 delivers very smooth focus and superior maneuverability. A longer arm system ensures that either light can be positioned in the widest range of positions possible, making it ideal for examination applications.

Specifications

• - High-intensity of 45,000 lux (4181 fc) at 1 meter
• - 3100 K color temperature offers natural and true coloring
• - High CRI (Color Rendering Index) of 96
• - Uses three quartz halogen bulbs – each rated with a 2000-hour bulb life; bulbs wired in parallel for continuous operation
• - Compact 20″ (51 cm) diameter lighthead
• - Extremely smooth focus mechanism with center sterilizable handle
• - 360° limitless arm-and-mounting-system-rotation around vertical axes (on single ceiling models)
• - Cool operation for long hours of use
• - 100V standard models: A51FL, A51SC, A51DC, A51W
• - 120V standard models: A50FL, A50SC, A50DC, A50W
• - 230V standard models: A53FL, A53SC, A53DC, A53W
• - 240V standard models: A52FL, A52SC, A52DC, A52W

Features

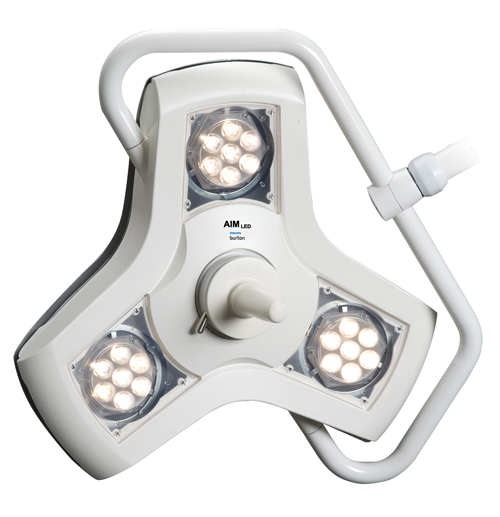

• - Philips Burton’s AIM LED – an exciting revolution in examination lighting. The AIM LED uses the latest advances in state-of-the-art lighting technology to achieve incredible performance and unsurpassed value and energy efficiency. The AIM LED provides about 10% more illumination (45,000 lux / 4181 fc at 1 meter) than the Outpatient II. A 92 CRI rating produces very accurate color visibility which is important for an accurate diagnosis. With 10 times greater (20,000 hours) lamp life than traditional light source products, you will save more than $1000 in bulb replacements alone. Additionally, the AIM LED uses 55% less energy.
• - The AIM LED has a unique Y-Shaped design, which facilitates placement of the lighthead around the physician’s head minimizing the obstruction of light into the examination field. The multiple reflectors of the AIM LED can be tilted by rotating the sterilizable light handle to adjust the size and pattern of the light to the working area.

Specifications

• - 45,000 lux (4181 fc) at 1 meter
• - 4300 K color temperature
• - CRI (Color Rendering Index) of 92
• - 3 LED modules with a 20,000-hour life
• - Adjustable focus using center handle
• - Assembled in USA
• - 360° limitless arm-and-mounting-system-rotation around vertical axes (on single ceiling models)
• - Cool operation for long hours of use
• - 120V standard models: ALEDFL, ALEDSC, ALEDDC, ALEDW
• - 240V standard models: ALEDFL*, ALEDSC*, ALEDDC*, ALEDW*

Features

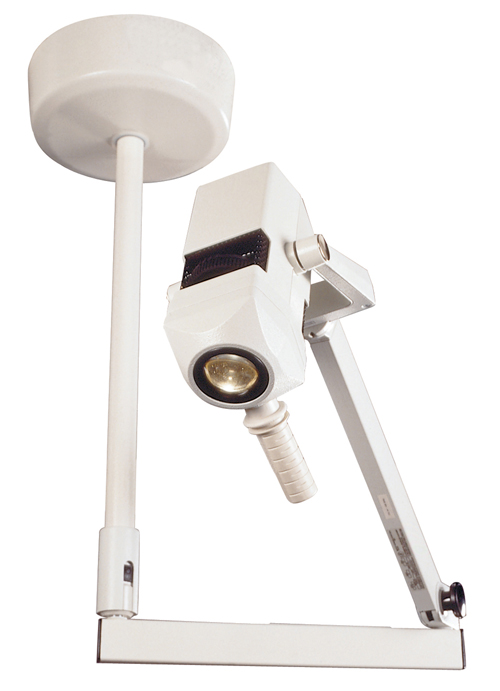

• - The aesthetically appealing CoolSpot II offers incredibly pure, white light along with a guaranteed no-drift arm, high-intensity setting and variable spot size control. The CoolSpot II offers intensity of up to 60,000 lux (5574 fc) at 1 meter. The CoolSpot II examination light is the spotlight of choice

Specifications

• - Up to 60,000 lux (5574 fc) at 1 meter
• - 4300 K color temperature
• - CRI (Color Rendering Index) of 94
• - Bi-level dimmer for variable intensity
• - Variable spot size of 2″ – 10″ (5 cm – 25 cm)
• - New, improved and easy to clean housing design with convenient SteriHandle for positioning
• - Removable, autoclavable center SteriHandle design allows removal or replacement of SteriHandle with one hand (for ensuring sterile procedures)
• - 150-watt halogen bulb provides 600-hour average bulb life on standard setting
• - Friction knob allows user to adjust friction on the self-balancing arm positioning to desired tension without a tool
• - Mounting systems meet California Seismic Codes
• - Assembled in USA
• - 120V standard models: CS316FL, CS316SC, CS316DC, CS316W,CS316ST,CS316DT
• - 100V standard models: CS315FL, CS315SC, CS315DC, CS315W,CS315ST,CS315DT
• - 230/240V standard models: CS325FL, CS325SC, CS325DC, CS325W, CS325ST, CS325DT

Features

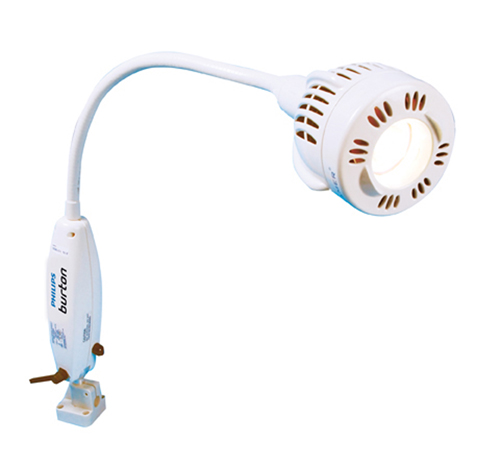

• - If your facility is searching for an all-purpose, rugged, compact halogen light, Philips Burton’s Gleamer is your solution. The Gleamer was designed to meet healthcare facilities’ most demanding specifications for high-intensity, cool operation, compact design, and value. Offering 45,000 lux (4181 fc), a sturdy gooseneck, plus optional 16" (41 cm) extension arm, and superior quality components, the Gleamer provides high-intensity, maximum flexibility and extraordinary reliability. The Gleamer also features a unique venting system, energy-absorbing infrared exchanger and reflector coatings, which filter out infrared for a nearly heat-free beam in a cool, yet compact housing.

Specifications

• - 45,000 lux (4181 fc) at 18" (46 cm)
• - 3200 K color temperature (natural coloring)
• - CRI (Color Rendering Index) of 91
• - 35-watt halogen bulb; 2000-hour life; easy bulb replacement
• - Cool housing temperature and cool light beam; light can be in continuous use for hours without causing discomfort to physician or patient
• - Convenient positioning with ergonomic positioning ridges
• - High-quality, space-saving 4-caster base – safe and flexible portable movement with locking feature in 2 of 4 casters
• - Assembled in USA
• - 120V standard models: GL30FL, GL30W
• - 230/240V standard models: GL32FL, GL30W

Features

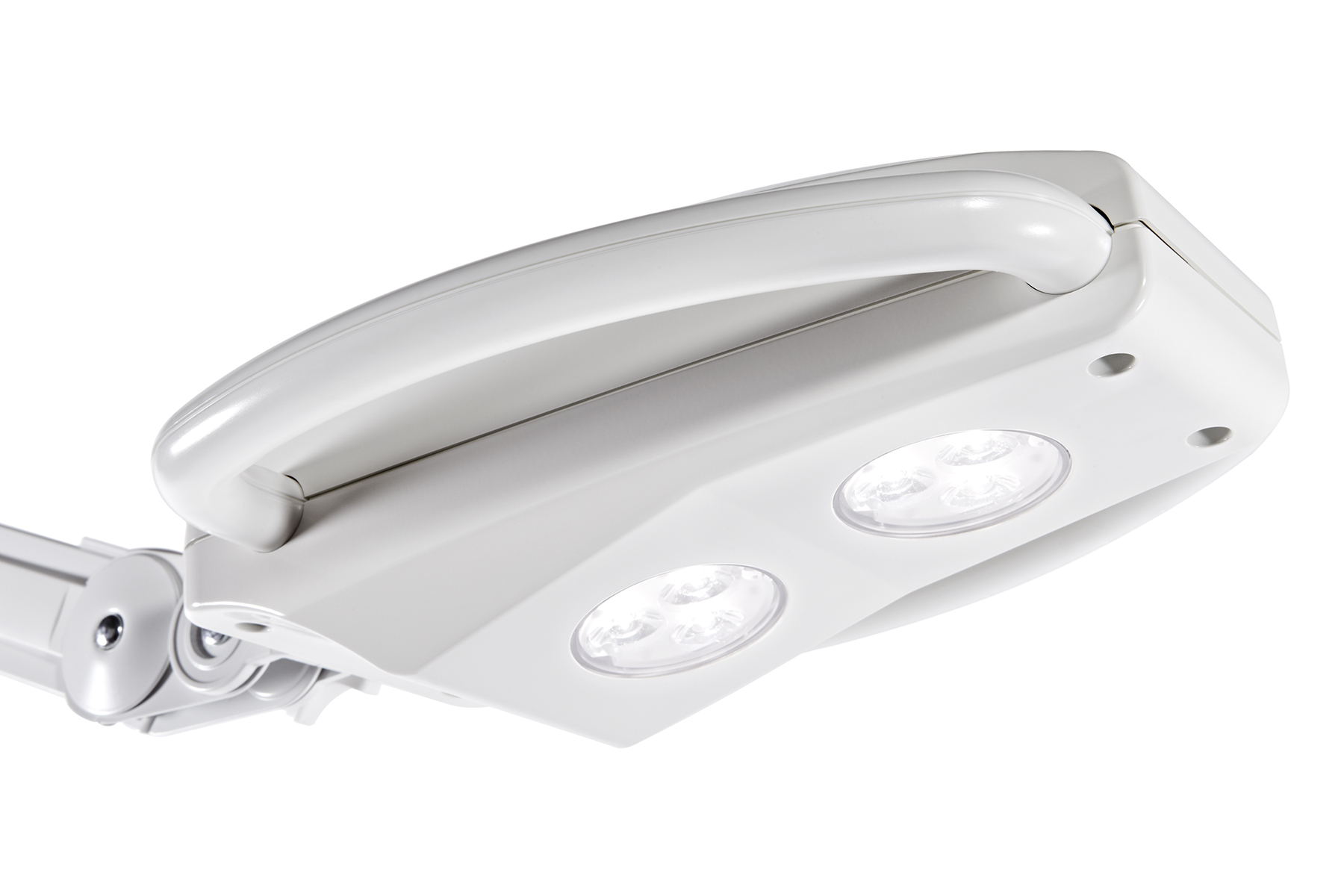

• - Higher performance and value for the practitioner, enhanced comfort for the patient. Nova Exam LED meets the demands of today's clinical examination applications. The LED light source produces a cool light that enhances physician/patient comfort while delivering a uniform beam pattern and higher illumination levels. A sleek head design, combined with a patented K-arm, allows quick and reliable positioning while being easy to clean and maintain. The operational benefits include lower power consumption and longer light source life.
• Designed for patient comfort and ease of use - Dual handles are easily accessible to position the light head
• Enhanced performance - Nova Exam LED delivers a uniform beam pattern that aids the examination process
• Lower cost of ownership - The LED source offers 10x the operational life of traditional halogen solutions

Specifications

• - Illuminance, Low Level: 25,000 lux (2323 fc) at 18″ (46 cm)
• - Illuminance, High Level: 50,000 lux (4645 fc) at 18″ (46 cm)
• - 4600 K color temperature
• - CRI (Color Rendering Index) of 93
• - Two LED light modules with a 40,000-hour life each
• - Contemporary aesthetic
• - Maximum arm reach of 45″ (114.3 cm)
• - Better value for the practitioner
• - Wall, floor, ceiling and table mount configurations
• - Assembled in USA
• - 120V standard models: NXFL, NXT, NXC, NXW
• - 240V models: NXFL*, NXT*, NXC*, NXW*

Features

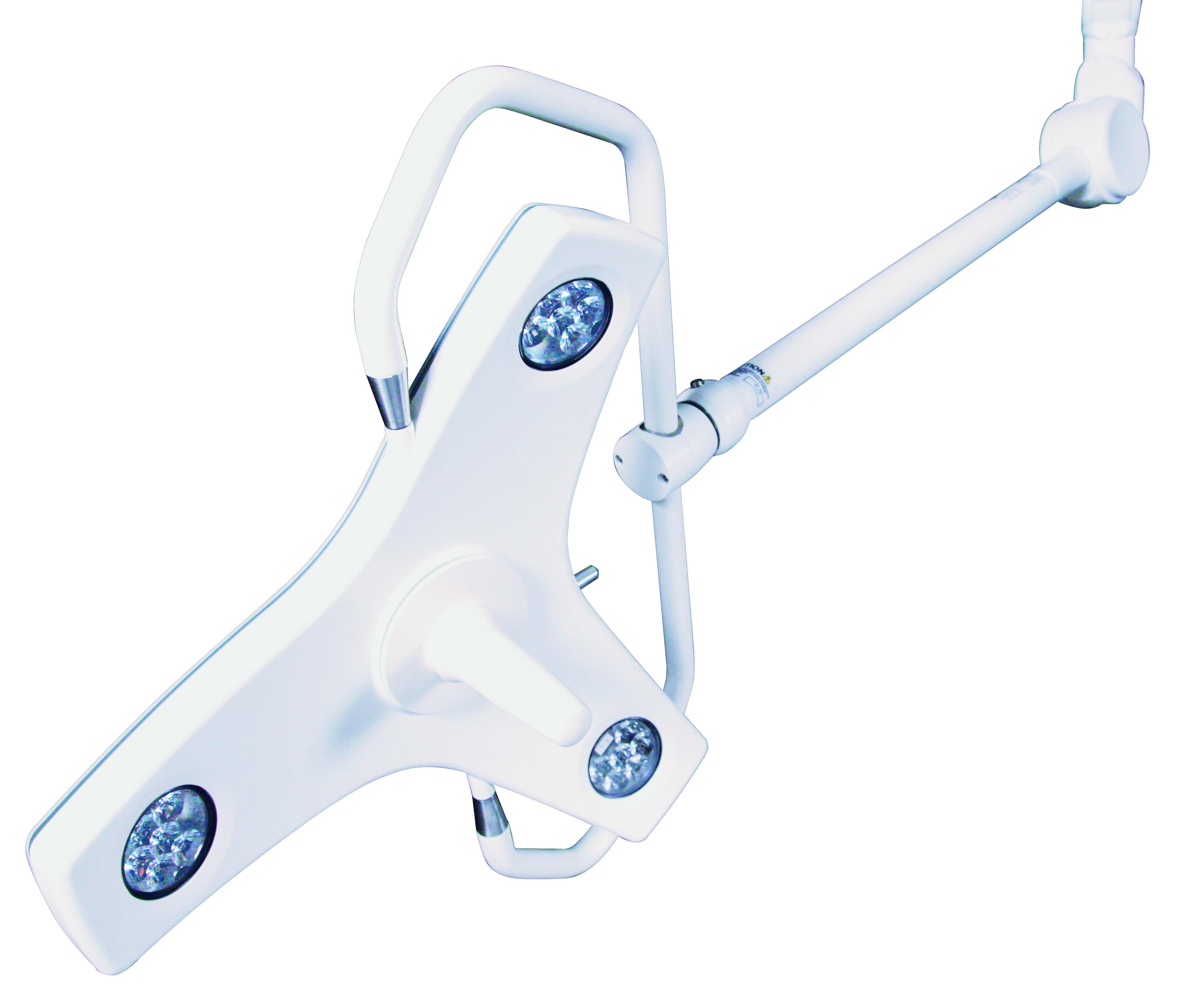

• - Outpatient LED is the next generation of examination lighting. Perfect for hospitals, physician’s offices, and veterinary practices, the Outpatient LED is designed for patient comfort and safety, high performance, and a lower cost of ownership. The virtually heat free light offers a 75% energy savings over current halogen options.

Specifications

• - 90,000 lux (8361 fc) at 24″ (61 cm)
• - 3700 k color temperature
• - CRI (Color Rendering Index) of 95
• - High R9>87, to accurately render skin tones
• - 20,000 hours average LED life
• - The unique shape of the light head reduces shadows on the examination area
• - The arm system provides a maximum reach of 37.5 inches and has a 360-degree rotation
• - A smooth finish aids in routine cleaning
• - Anti-microbial paint inhibits the growth of microbes
• - Floor stand, Wall, and Ceiling mounting options
• - Assembled in USA
• - 120V standard models: OPLEDFL, OPLEDSC, OPLEDDC, OPLEDW

Features

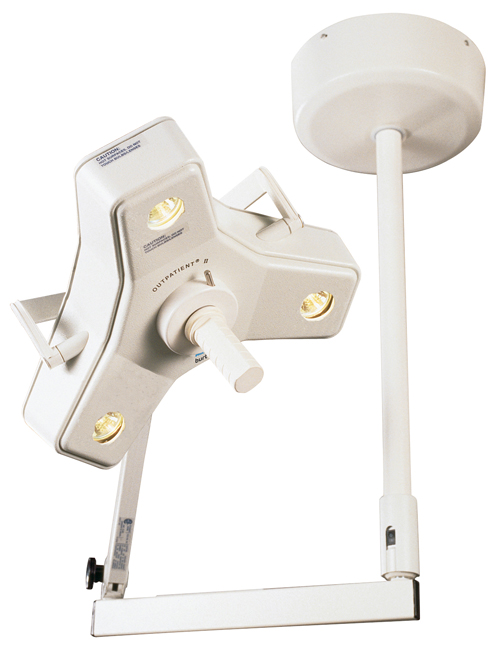

• - The Outpatient II is the documented industry leader for examination lights. More physicians choose the Outpatient II than any other light for focusable flood-type light, maximum intensity and shadow-free operation. With minimal heat output and high color temperature, the Outpatient II is the perfect low-maintenance, top performing light for nearly every application in the hospital or physician’s office.

Specifications

• - 86,000 lux (7990 fc) at 24″ (61 cm)
• - 3300 K color temperature
• - CRI (Color Rendering Index) of 94
• - Focuses with central removable, autoclavable SteriHandle
• - Friction knob allows user to adjust friction on the self-balancing arm positioning to desired tension without a tool
• - Cool operation ensured with heat filters and dichroic coatings
• - Shadow-free operation provided by three 50-watt halogen bulbs, each with 2000-hour average bulb life
• - Bulbs are wired in parallel to ensure continuous operation
• - Design allows removal or replacement of SteriHandle with one hand (for ensuring sterile procedures)
• - Floorstand units include footswitch, locking casters and cord wrap
• - Mounting systems meet California Seismic Codes
• - Assembled in USA
• - 120V standard models: OP216FL, OP216SC, OP216DC, OP216W, OP216ST, OP216DT
• - 100V models: OP215FL, OP215SC, OP215DC, OP215W, OP215ST, OP215DT
• - 240V models: OP225FL, OP225SC, OP225DC, OP225W, OP225ST, OP225DT
